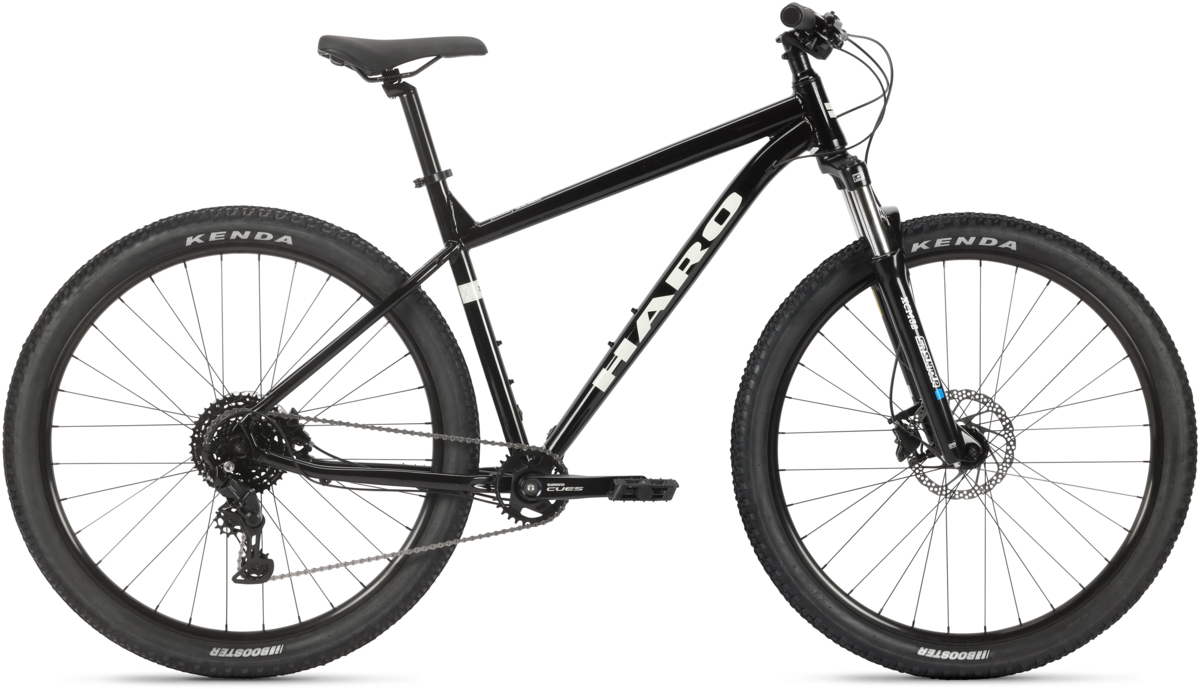

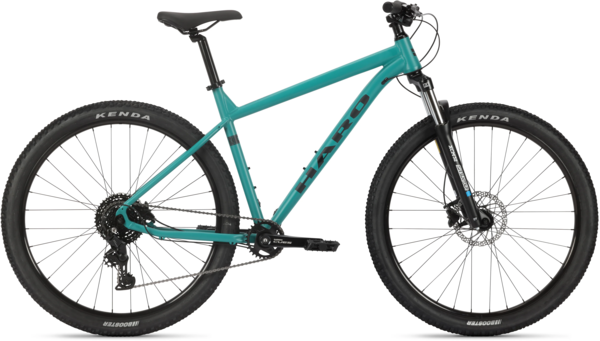

Haro Flightline LTD 29
$799.99
Details
The Flightline is our most popular MTB and the Flightline LTD shakes things up with 1 X 9 Shimano Cues gearing setup, an SR Suntour SF19-XCT30 100mm travel fork and Tektro hydraulic brakes with a 160mm front and 180mm rear rotor for maximum stopping power in all conditions. Built on our proven Flightline aluminum frame, the Flightline LTD performs at a high level, without the high price tag.
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 406mm | 457mm | 508mm | 559mm |
| Top Tube (Effective) | 595mm | 610mm | 635mm | 645mm |
| Head Tube Angle | 69° | 69° | 69° | 69° |
| Seat Tube Angle | 72.5° | 72.5° | 72.5° | 72.5° |
| Chainstay Length | 450mm | 450mm | 450mm | 450mm |
| BB Drop | 64mm | 64mm | 64mm | 64mm |
| Wheelbase | 1105.98mm | 1136mm | 1146.64mm | 1157.3mm |
| Head Tube Length | 100mm | 100mm | 110mm | 120mm |
| Standover | 721mm | 740mm | 773.7mm | 799mm |
| Stack Height | ||||
| Reach | 394mm | 425mm | 435mm | |
| Axle to Crown | 515mm | 515mm | 515mm | 515mm |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Stem Length | ||||
| Bar Width | ||||
| Crank Length | ||||
| Wheel Size |
Specs
| Frame | Haro Flightline 6061-T6 Aluminum frame, with internal cable routing and tapered head tube |
|---|---|
| Fork | SR Suntour SF19-XCT30 100mm suspension fork |
| Wheels | Double-wall i25 alloy rims |
| Hubs | Alloy quick-release |
| Tires | Kenda K1153 29 x 2.35" (front & rear) |
| Bottom Bracket | Sealed cartridge, 73mm |
| Crankset | Prowheel 3-piece alloy cranks with 32T chainring |
| Shifters | Shimano Cues 9-speed Rapidfire Plus with optical display |
| Rear Derailleur | Shimano Cues 1 X 9-speed |
| Cassette/Freewheel | Shimano Cues 9-speed 11-42T |
| Chain | 9-speed |
| Brakes | Tektro hydraulic disc with 160mm front and 180mm rear rotors |
| Brake Levers | Tektro 2-finger |
| Handlebars | 780mm wide, 15mm Rise, 9° back sweep, 5° up sweep |
| Tape/Grips | DDK TPR 130mm |
| Stem | Alloy 3D forged 60mm reach |
| Headset | Neco 1-1/8" threadless |
| Seatpost | Alloy micro-adjust |
| Saddle | DDK MTB |
| Pedals | FPD nylon platform 9/16" |
| Accessories & Extras | Frame can be upgraded with aftermarket dropper post (with internal routing) and tapered front fork. |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Matte Green / Medium / 29-inch | 691840151702 | 15170 | FLI34452556M |
